Pancake Loadcells
Pancake load cells are low-profile, strain-gauge based transducers engineered for precise force and weight measurement in confined spaces. Their flat geometry minimizes moment sensitivity and ensures uniform load distribution across the sensing element. Constructed from stainless steel with hermetic sealing, they offer durability, environmental protection, and high overload capacity. With measurement ranges from a few kilograms to several hundred tons, pancake load cells deliver excellent linearity, repeatability, and low hysteresis. These features make them ideal for industrial automation systems, material testing rigs, and dynamic weighing applications where accuracy and compact integration are critical.
Capacities from 300 to 100K lbf (1.5 to 450 kN)
• Proprietary Interface temperature compensated strain gages
• Performance to 0.04%
• High output – to 4 mV/V
• Eccentric load compensated
• 0.0008%/°F (0.0015%/°C) temp. effect on output • Low deflection
• Barometric compensation
• Tension and compression
• Compact size

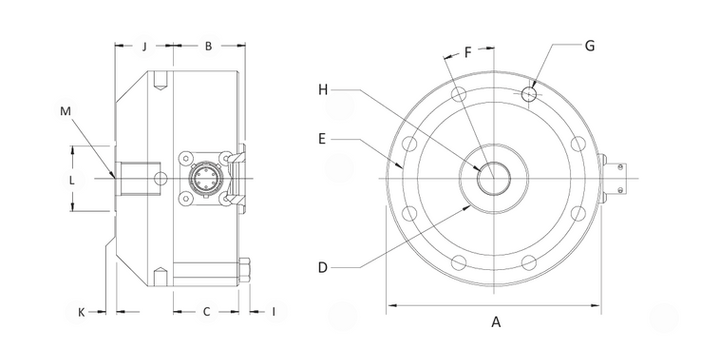

Drawing

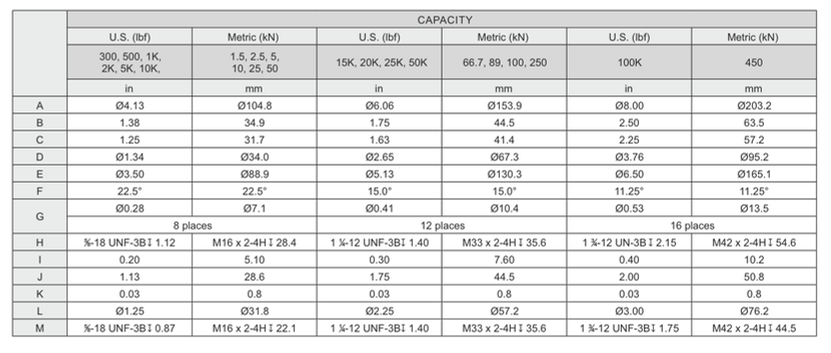

Dimensions
Spcifications
Measuring Range : 300, 500 1K, 2K , 5K, 10K, 15K, 20K, 25K, 50K, 100K
Static Error Band – %FS : ±0.04
Nonlinearity – %FS : ±0.04
Hysteresis – %FS : ±0.03
Nonrepeatability – %RO : ±0.01
Creep, in 20 min – % : ±0.025
Side Load Sensitivity – % : ±0.25
Eccentric Load Sensitivity – % / in : ±0.25
Compensated Temperature Range : -10 to +45°C
Operating Range : 55 to +90°C
Effect on Zero - %RO / deg : ±0.0015°C
Effect on Output - % / deg :±0.0015 °C
Rated Output – mV/V (Nominal) : 2
Excitation Voltage – VDC MAX : 20
Bridge Resistance – Ohm (Nominal) :350
Zero Balance – %RO : ±1.0
Insulation Resistance – Megohm : 5000
Safe Overload – %CAP : ±150
Deflection @ RO : 0.03 mm
Optional Base – P/N (Metric) : B101 (M)
Natural Frequency – kHz : 3.9, 5.0, 6.9, 9.8
Material : Aluminum and Alloysteel model dependent
Tenson and compression
Options
• Base (recommended)
• Connector protection
• Standardized output
• Transducer Electronic Data Sheet (TEDS)
• Custom calibration
• Multiple bridge
• Special threads
• Dual diaphragm
• Cable length
• Add connector to cable
• Integral cable – 10 (3 m)
• PT02E-10-6P bayonet connector
• PC04E-10-6P screw-type connector
• MS-3102R-12SP-10P connector
